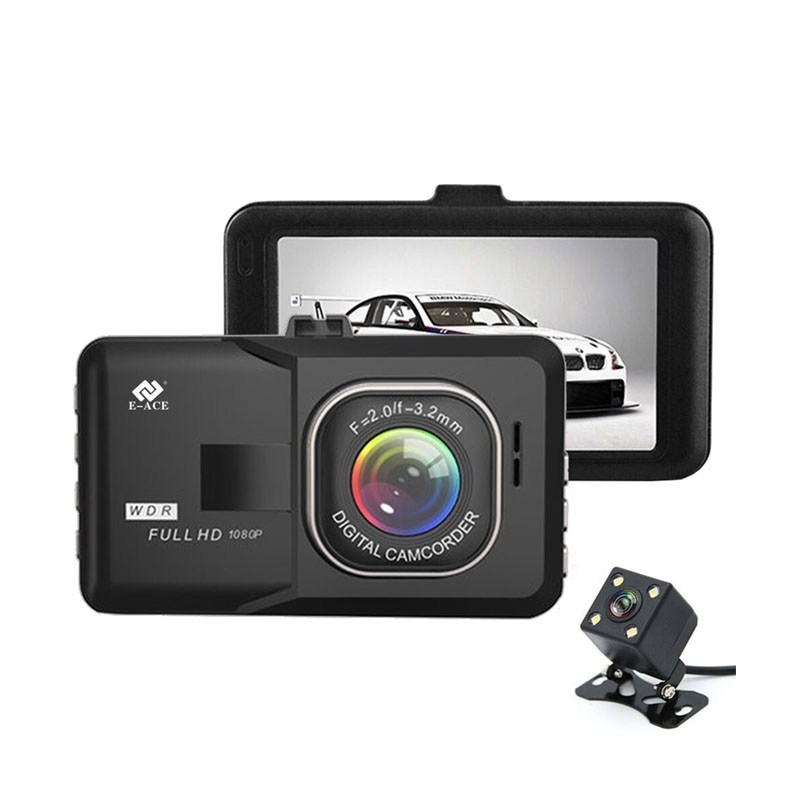

Full HD Camera 5650

• 3 inch LCD Display 16:9 LTPS
• Video Recording Front & Back at the same time.
• Loop Recording, Recording video continuously, seamless video.
• 170 degree Wide Angle 6G Glass Lens.
• Automatically Power On / Off. Support auto ignition boot, turn off shut down
• One Key lock video, save important video clip and prevent overwritting.
• 5 Display Video Mode on LCD Screen.
• WDR: Wide dynamic range technology helps you to take more exquisite image in all kinds of light.
• Screen Saver Support. The display screen will shut down in yr pre-set minutes. Select OFF if you do not want the screen to shut down. The CVR will keep recording even the screen is shut down.
• G-Sensor Support. Record the crash information in traffic accident, real black box.
• Motion detection Support
• Parking detection Support
• Support up to 32GB Micro SD Card.

Specifications

• Model: D40
• Dimensions: 8.5 x 4.7 x 3.5 cm (W x L x H)
• Weight: 112 grams

Display

• Screen Size 3 inches
• Screen Type TFT

Lens & Image Sensor

• Wide Angle 1707
• A+ HD wide-angle lens

Video (Front & Rear)

• Video Format AVI
• Video Resolution
  • 1080P FHD 1920 x 1080
  • 720P HD 1280 x 720
• Video Resolution (Rear)
  • 720 x 480 pixels
• Loop Recording: Off / 3 mins / 5 mins / 10 mins
• Exposes: -2.0,-5/3,-4/3,-1.0,-2/3,-1/3,+0.0,+1/3,+2/3,+1.0,+4/3,+5/3,+2.0
• Audio: Off / On
• Motion Detection: Off / On
• Date Stamp: Off / On
• WDR: Off / On
• Gsensor Support
• Parking Guide
• Video Output PAL, NTSC


• Images JPEG
• Photo Resolution
  • 12M (4032 x 3024)
  • 10M (3648 x 2736)
  • 8M (3264 x 2448)
  • 5M (2592 x 1944)
  • 3M (2048 x 1536)
  • 2MHD (1920 x 1080)
  • 1.3M (1280 x 960)
• Capture Mode: Single / 2S Timer / 5S Timer / 10S Timer
• Sequence: Off / On
• Quality: Fine / Normal / Economy
• Sharpness: Strong / Normal / Soft
• White Balance: Auto / Daylight / Cloudy / Tungsten/ Fluorescent
• Color: Color / Black & White / Sepia
• ISO: Auto / 100 / 200 / 400
• Exposes: -2.0,-5/3,-4/3,-1.0,-2/3,-1/3,+0.0,+1/3,+2/3,+1.0,+4/3,+5/3,+2.0
• Anti Shaking: Off / On
• Quick Review: Off / 2secs / 5secs
• Date Stamp Support

Functions

• Date / Time
• Auto Power Off: 30 secs / 1 min / 3 mins / Off
• Beep Sound: Off / On
• Frequency 50Hz / 6Hz
• Screen Saver: 3mins / 5 mins / 10 mins / Off
• Car Plate Support
• Format
• Default Setting
• Microphone Yes
• Motion Detection Yes
• Auto-Power On Yes
• G-sensor Yes
• TV Mode: PAL / NTSC

Storage

• Storage Expansion TF / MicroSD
• 8GB  32GB max, min Class 6 and above
• Built-in Memory 64MB (store image only)

Power Source & I/O Interface

• Working Voltage 5V / 1A
• Build In Battery Capacity 200mAh
• Data interface Mini USB
